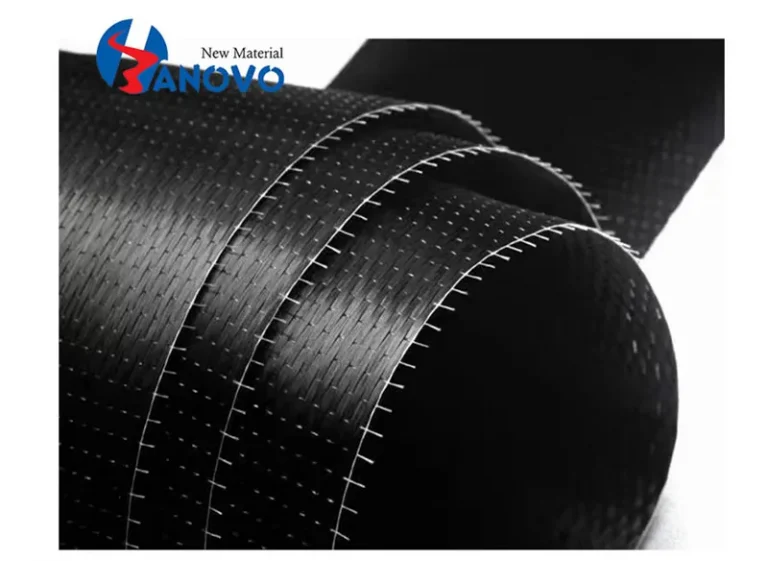

Carbon Unidirectional Fabric
Hanovo Unidirectional carbon fabric mainly made by 12K carbon fiber with ordinary weight 200gsm and 300gsm. It has good performance of high strength, high modulus, light weight, easy construction……
Product Description
Hanovo Unidirectional carbon fabric mainly made by 12K carbon fiber with ordinary weight 200gsm and 300gsm. It has good performance of high strength, high modulus, light weight, easy construction, high temperature resistance, Anti-acid corrosion, and other advantages.
It is used mainly in crack repair, building reinforcement, reinforcement against earthquake, etc.
Applications Of Carbon Unidirectional Fabric
- Use of the building load increases
- The project uses functional changes
- Material aging
- The concrete strength is lower than the design value
- Structural cracks processing
- Harsh environment service component repair and protection
Carbon Unidirectional Fabric Technical Data
| Type | Grade | Tensile Strength (Mpa) | Tensile Modulus (Gpa) | Elongation (%) | Thickness (mm) | Weight (g/㎡) |
|---|---|---|---|---|---|---|
| H12K-UD200 | I | ≥3400 | ≥240 | ≥1.7 | 0.111 | 200 |
| II | ≥3000 | ≥210 | ≥1.5 | 0.111 | 200 | |
| H12K-UD300 | I |
≥3400 | ≥240 | ≥1.7 | 0.167 | 300 |
| II | ≥3000 | ≥210 | ≥1.5 | 0.167 | 300 |
