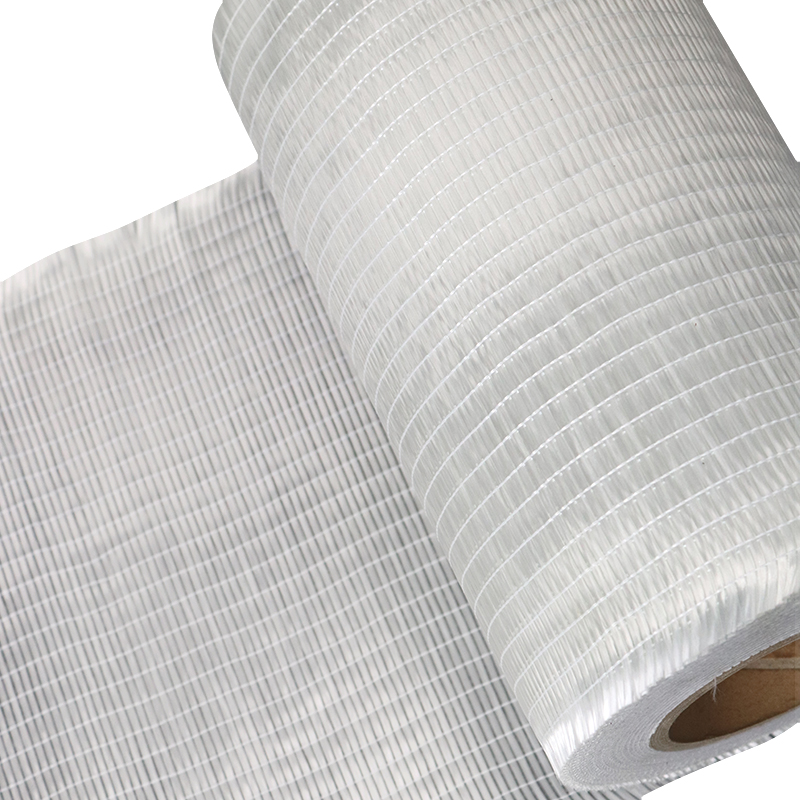

90 degree unidirectional fiberglass
Weft 90° Unidirectional Fabric is a FRP composite based on 90°weight, attaching (50-500)g/m2 CSM or Nonwoven fabric on the bottom.
Product Description
Weft 90° Unidirectional Fabric is a FRP composite based on 90°weight, attaching (50-500)g/m2 CSM or Nonwoven fabric on the bottom.
The weight of the weft direction is 150-1200g/m2, the width is from 5-210 inches.
This fabric is suitable for Polyester resin, Vinyl resin, Epoxy resin, Phenolic resin etc. It is mainly used in FRP pipes, containers industry etc.
Features of 90 degree unidirectional fiberglass
- High Strength
- Quick Wet out
Applications Of 90 degree unidirectional fiberglass
The main usage is pipeline industries.
Such as FRP pipe, FRP tank, FRP chimney, rod material, pole material, water tower, vessel and pultrusion techniques in width direction reinforcement.
90 degree unidirectional fiberglass Technical Data
| STYLE | Total Weight (g/m2) | 0° Layer (g/m2) | 90° Layer (g/m2) | Mat (g/m2) | RESIN COMPATIBILITY |
|---|---|---|---|---|---|
| ET227 | 227 | / | 223 | / | UP or Epoxy resin |
| ET260 | 264 | / | 260 | / | UP or Epoxy resin |
| ET300 | 307 | / | 300 | / | UP or Epoxy resin |
| ET350 | 357 | / | 350 | / | UP or Epoxy resin |
| ET400 | 407 | / | 400 | / | UP or Epoxy resin |
| ET450 | 459 | / | 450 | / | UP or Epoxy resin |
| ET525 | 536 | / | 525 | / | UP or Epoxy resin |
| ET300-M300 | 609 | / | 300 | 300 | UP or Epoxy resin |
