0 degree unidirectional fiberglass
Warp 0° Unidirectional fiberglass Fabrics based on 0°weight and 90°weight as supplement which is usually 100% weight of 0° weight, attaching (50-500)g/m2 CSM or Nonwoven fabric on the bottom.
Product Description
Warp 0° Unidirectional fiberglass Fabrics based on 0°weight and 90°weight as supplement which is usually 100% weight of 0° weight, attaching (50-500)g/m2 CSM or Nonwoven fabric on the bottom.
The weight of the warp direction is 150-1200g/m2, the width is from 5-210 inches.
This fabric is suitable for the Polyester resin, Vinyl resin, Epoxy resin, Phenolic resin etc.
Features of 0 degree unidirectional fiberglass
- Wide width, the maximum width is 210inch
- Ease of handling and cutting
- High Strength and Quick Wet outs
- Stability
- Stiffness
Applications Of 0 degree unidirectional fiberglass

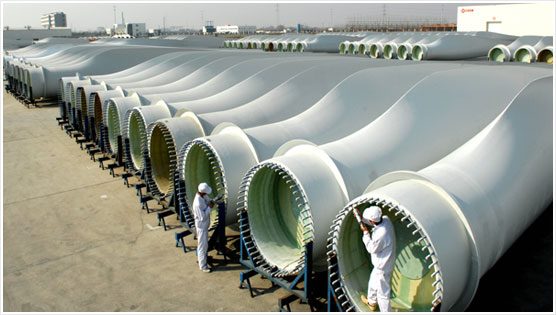

Used in length directional reinforcement or loop reinforcement, the main usages are wind blades and pultrusion industries.
Such as vane of the wind generator, bridge, pier, pillar’s reinforcement and so on.
0 degree unidirectional fiberglass Technical Data
| STYLE | Total Weight (g/m2) | 0°Layer (g/m2) | 90°Layer (g/m2) | Mat (g/m2) | RESIN COMPATIBILITY |
|---|---|---|---|---|---|
| EW600 | 632 | 591 | 33 | / | UP or Epoxy resin |
| EW800 | 920 | 803 | 108 | / | UP or Epoxy resin |
| EW930 | 927 | 864 | 55 | / | UP or Epoxy resin |
| EW1200 | 1208 | 1150 | 50 | / | UP or Epoxy resin |
| EW200-M30 | 266 | 226 | / | 30 | UP or Epoxy resin |
| EW350-M30 | 395 | 354 | / | 30 | UP or Epoxy resin |
| EW525-M30 | 569 | 528 | / | 30 | UP or Epoxy resin |
